Auto-Set® Model FSFD-TR
The Auto-Set® Model FSFD-TR is designed for use in areas where a Temperature Rise rating in addition to standard fire ratings is required. Available with up to a 450° F over 30 minutes Temperature Rise rating when required, it meets building code requirements for fire doors used in exit enclosures and exit passageways of non-sprinklered buildings.
The Temperature Rise rated fire door model FSFD-TR is designed for openings where a temperature rise rating is a requirement such as in egress corridors, exit passageways and exit enclosures.
This technology is the subject of US Patent No. 8,453,707.
Ratings
Up to 4-hour rated UL 10B*
Single assembly, 90-minute fire rating, available with a temperature rise rating of 650° over 30 minutes when required
Double assembly positioned back-to-back, 4-hour fire rating, available with a temperature rise rating of 450° over 30 minutes when required
Smoke & Draft labeled UL 1784
*Listed under the Canadian equivalent CAN/ULC S104
Code Compliance
CCRR-1086
Regulatory Approvals
Egress
Not applicable
Operation
Auto-Set® automatic resetting
Fail-Safe Design – automatic self-closing mechanism does not require power operation
Based upon door size, available with hand-chain or hand-crank operation
Size
Unlimited heights and widths to 80′; for larger sizes and custom configurations consult the factory
Finishes
McKEON Sterling Gray
Powder coat of any color as selected
Stainless steel — No. 4 Polish or No. 8 Mirror
Copyright Notice All rights reserved. (the “Content”) are protected by copyright under U.S. copyright laws and are the property of McKeon Rolling Steel Door Co,, Inc. The Content is provided for use in selecting McKEON products and obtaining design and application assistance from McKEON. All other uses of the Content without the express prior written permission of McKEON are strictly prohibited.

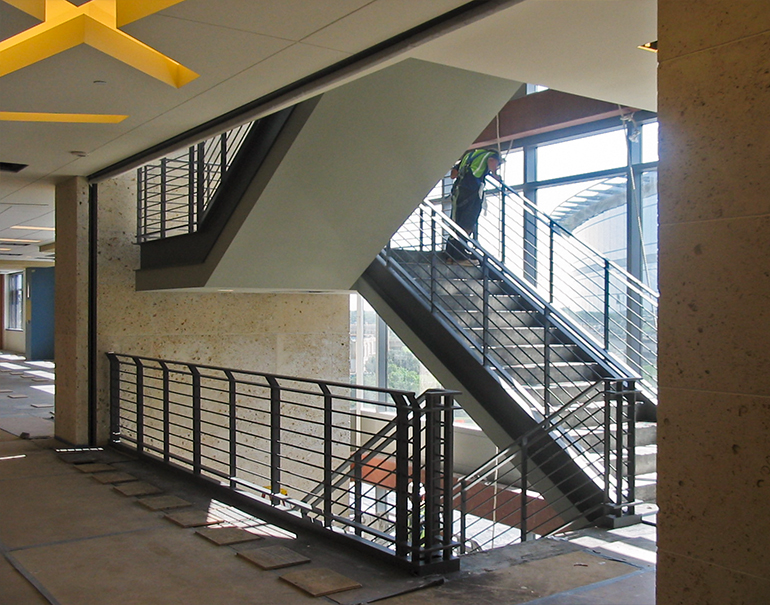

![FSFD-TR RadioShack 2O | McKEON FSFD-TR RadioShack 2 Open](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-2O.jpg)
![FSFD-TR RadioShack 2M | McKEON FSFD-TR RadioShack 2 Descending](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-2M.jpg)

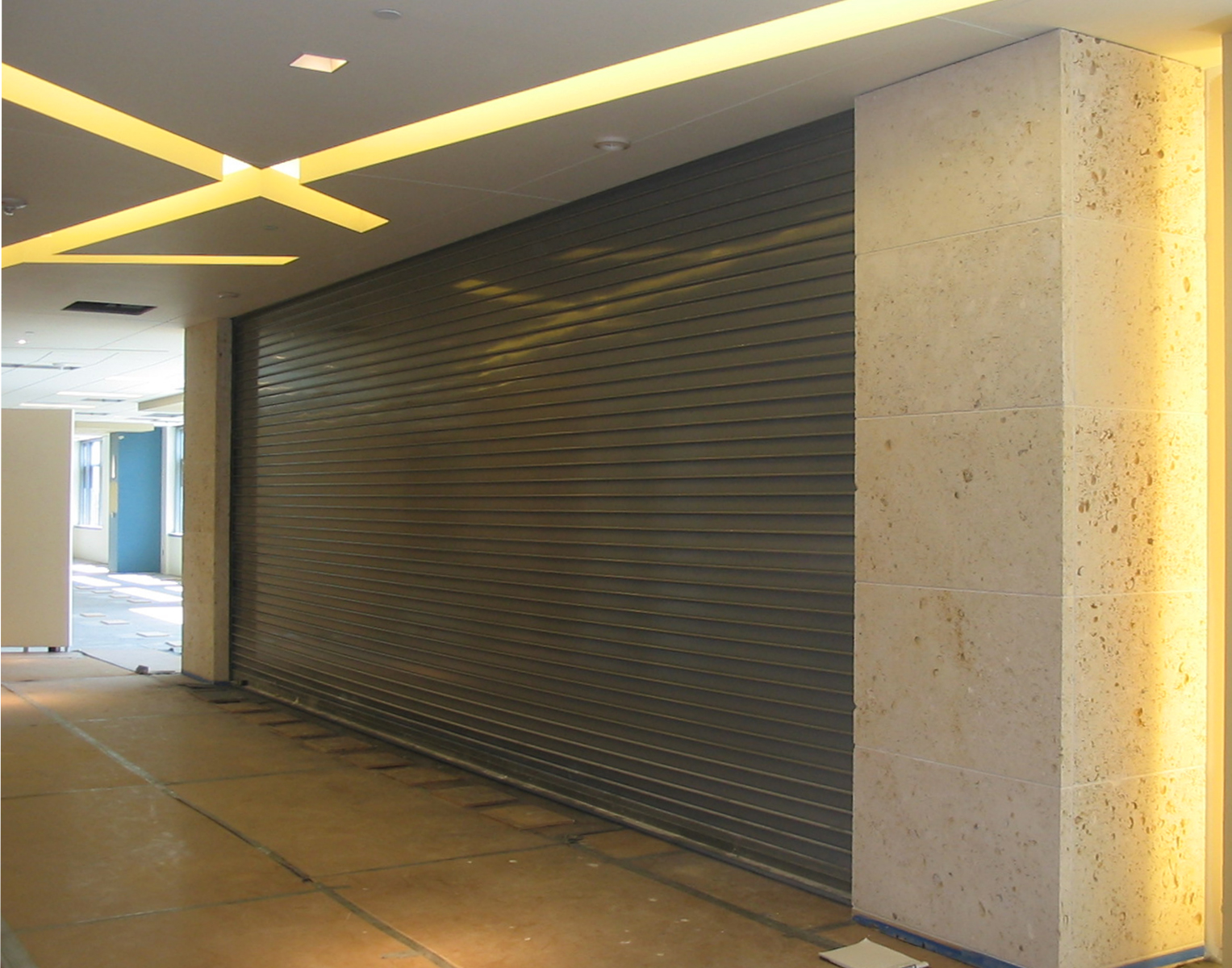

![FSFD-TR RadioShack 2C | McKEON FSFD-TR RadioShack 2 Deployed](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-2C.jpg)

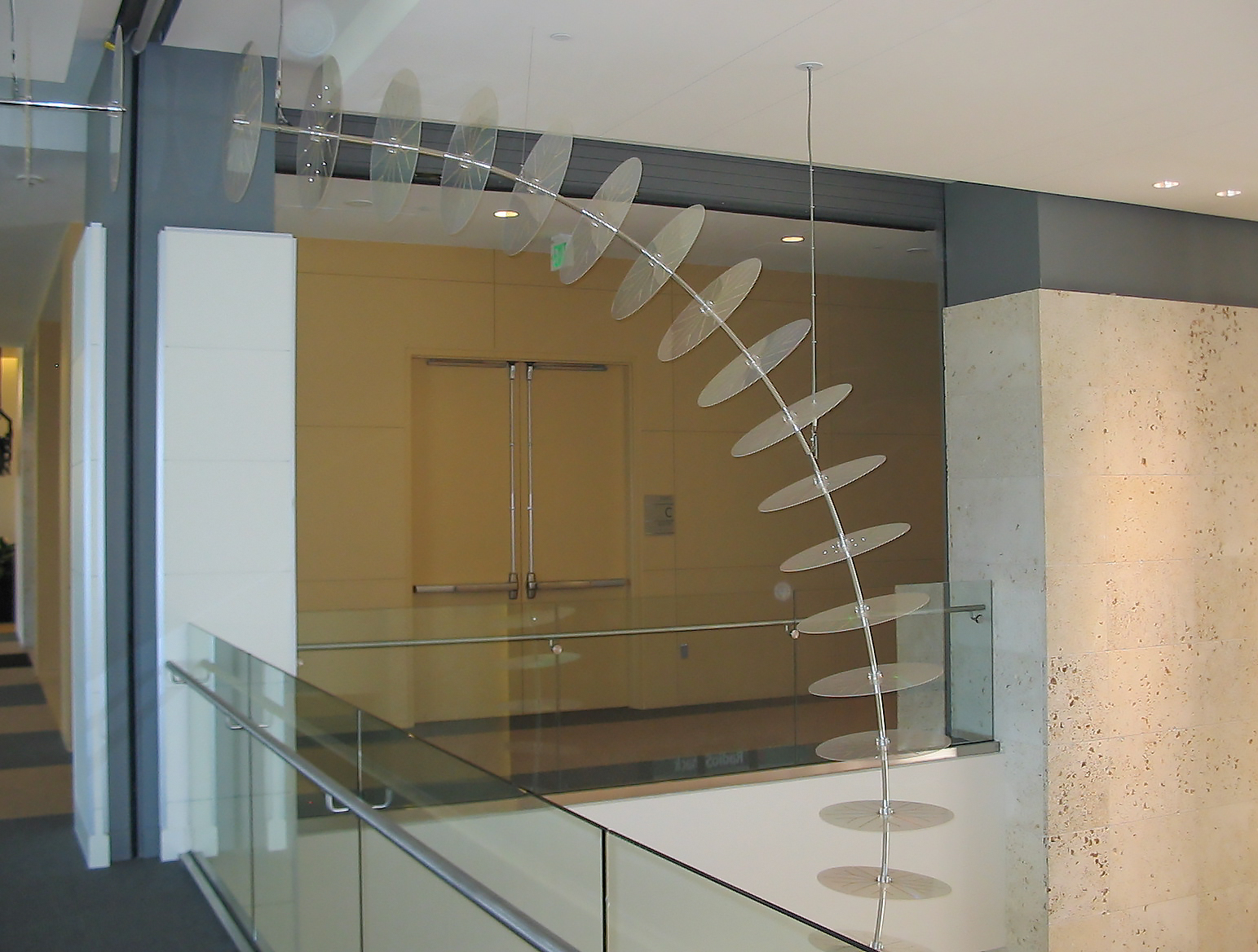

![FSFD-TR RadioShack 1O | McKEON FSFD-TR RadioShack Open](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-1O.jpg)

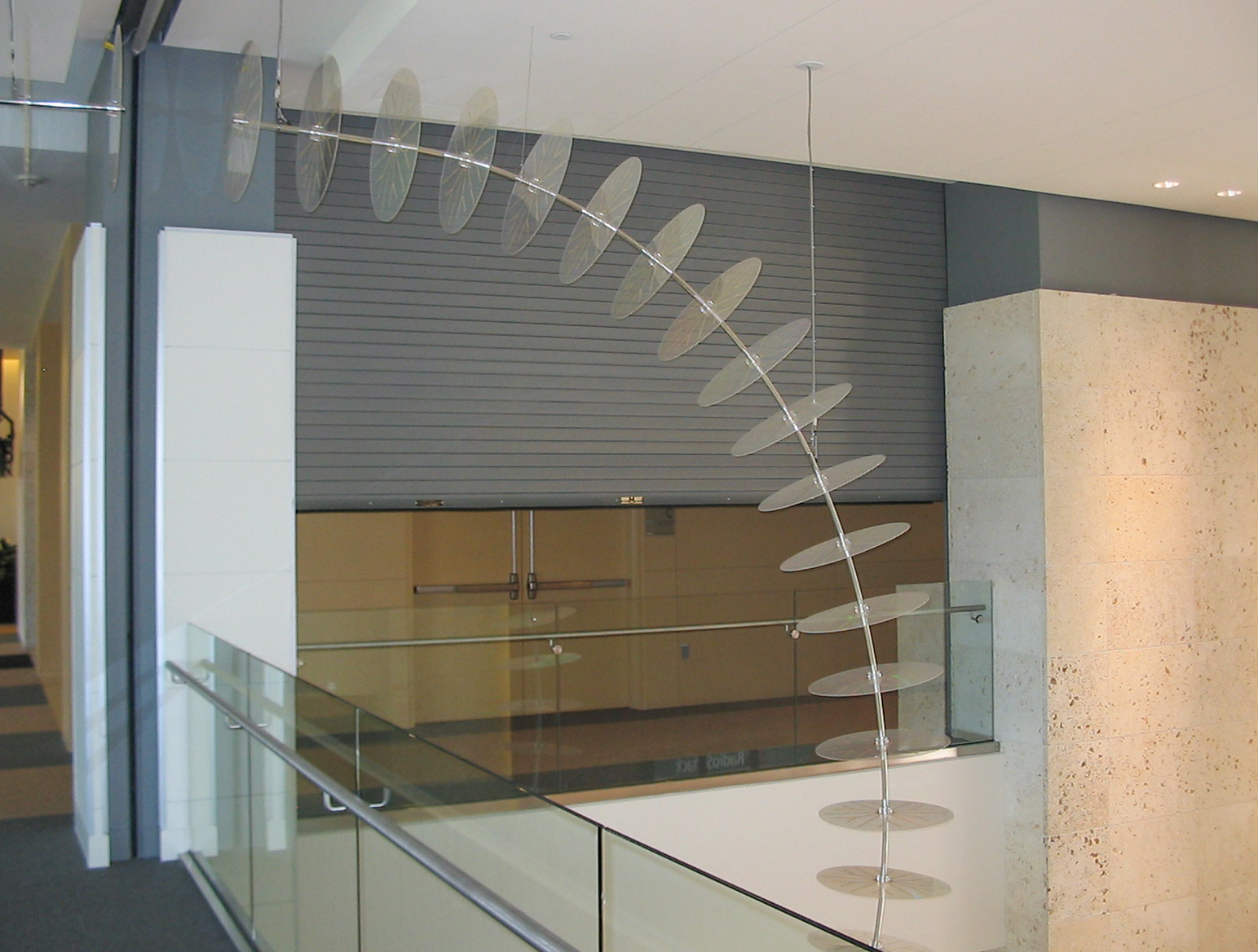

![FSFD-TR RadioShack 1M | McKEON FSFD-TR RadioShack Descending](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-1M.jpg)

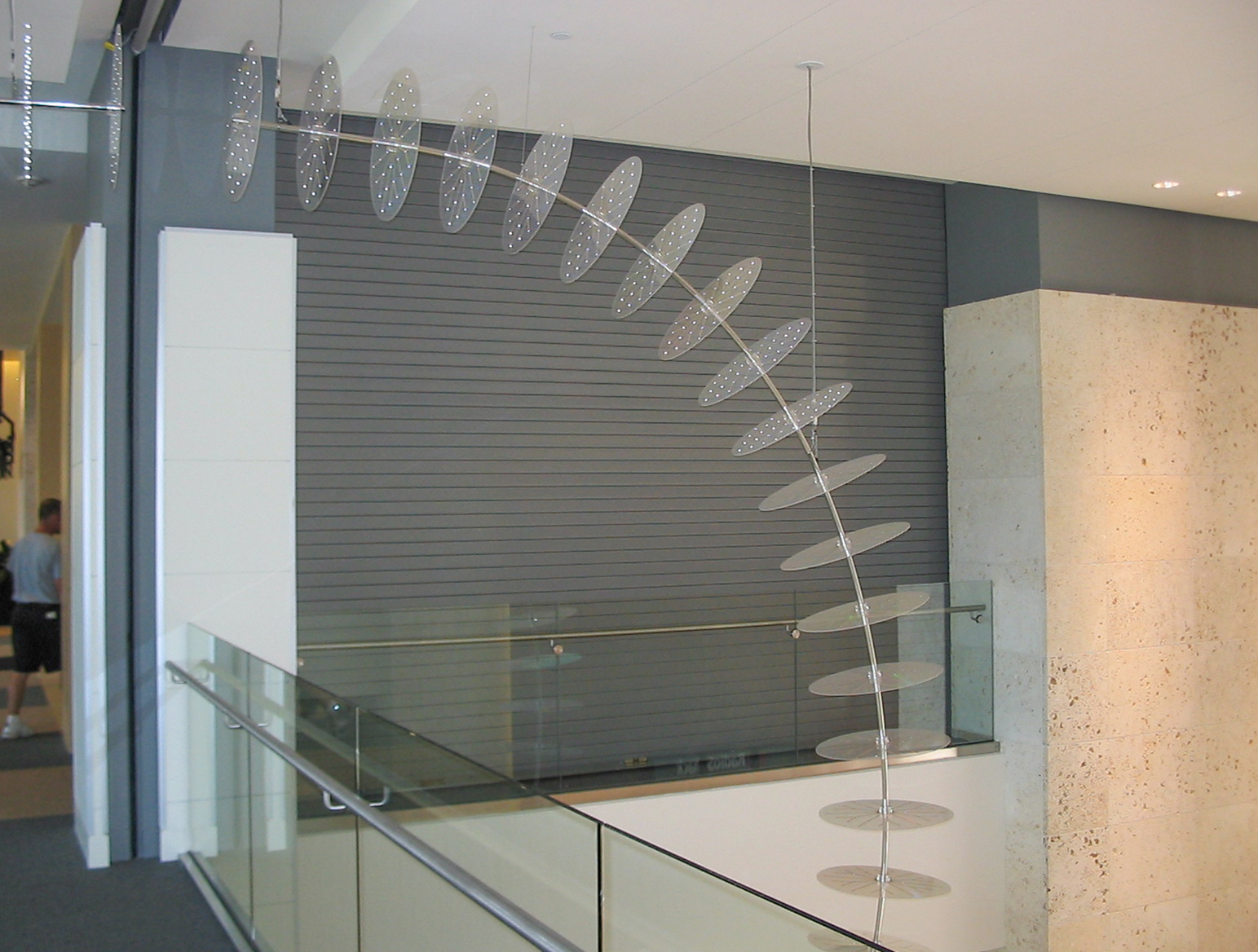

![FSFD-TR RadioShack 1C | McKEON FSFD-TR RadioShack Deployed](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-1C.jpg)
![FSFD-TR RadioShack 3O | McKEON FSFD-TR RadioShack 3 Open](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-3O.jpg)

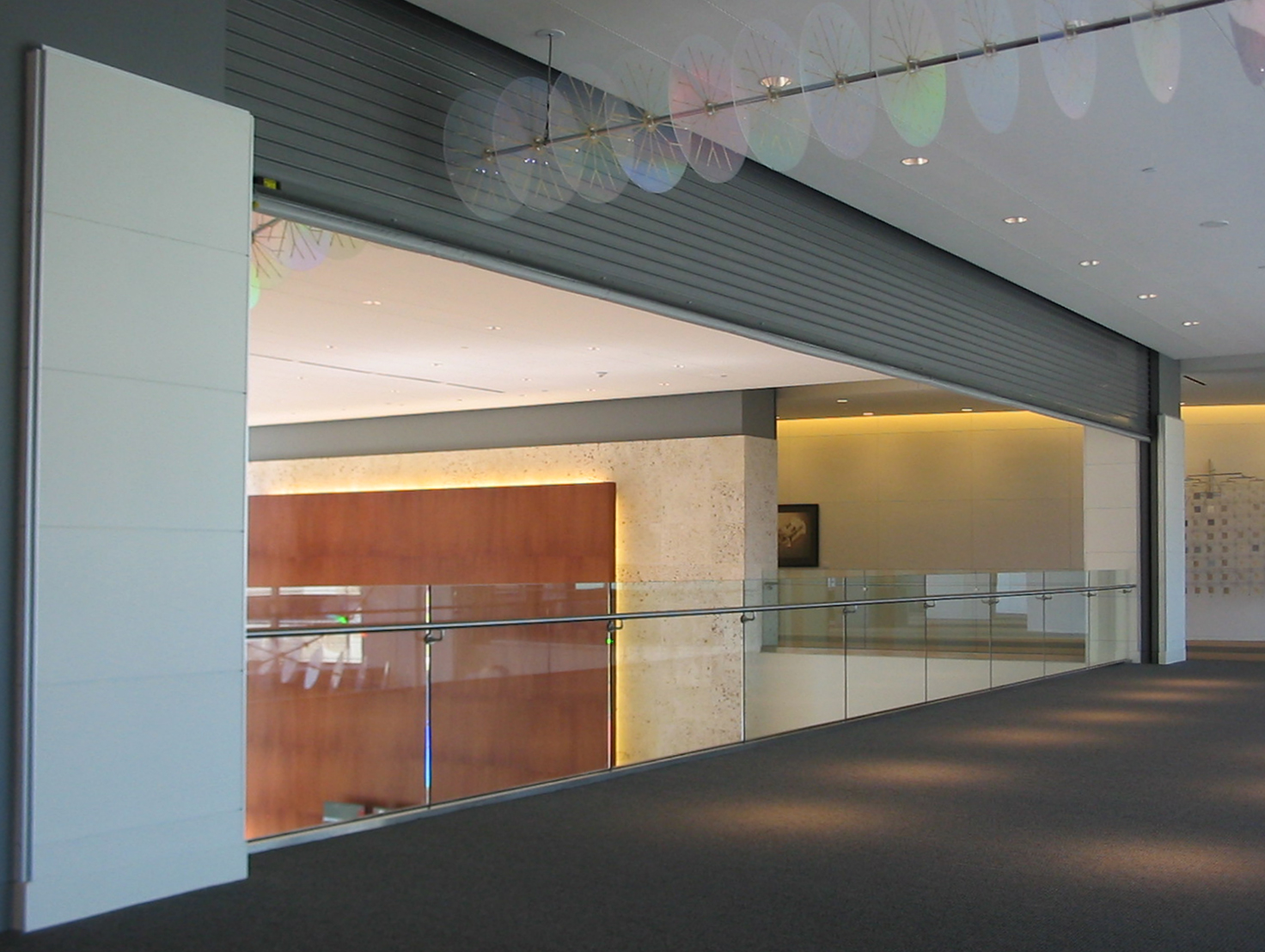

![FSFD-TR RadioShack 3M1 | McKEON FSFD-TR RadioShack 3Mid1](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-3M1.jpg)

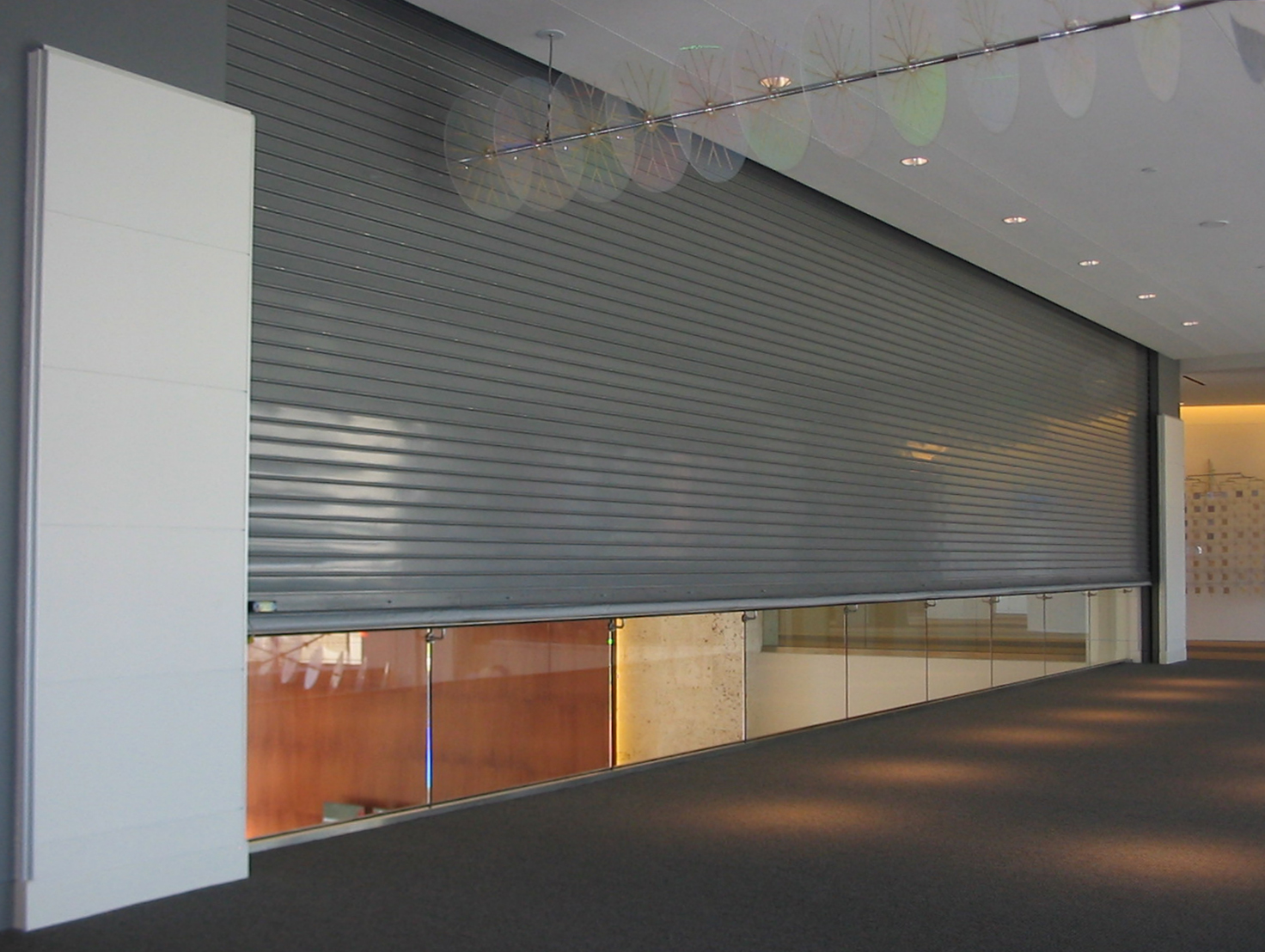

![FSFD-TR RadioShack 3M2 | McKEON FSFD-TR RadioShack 3Mid2](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-3M2.jpg)

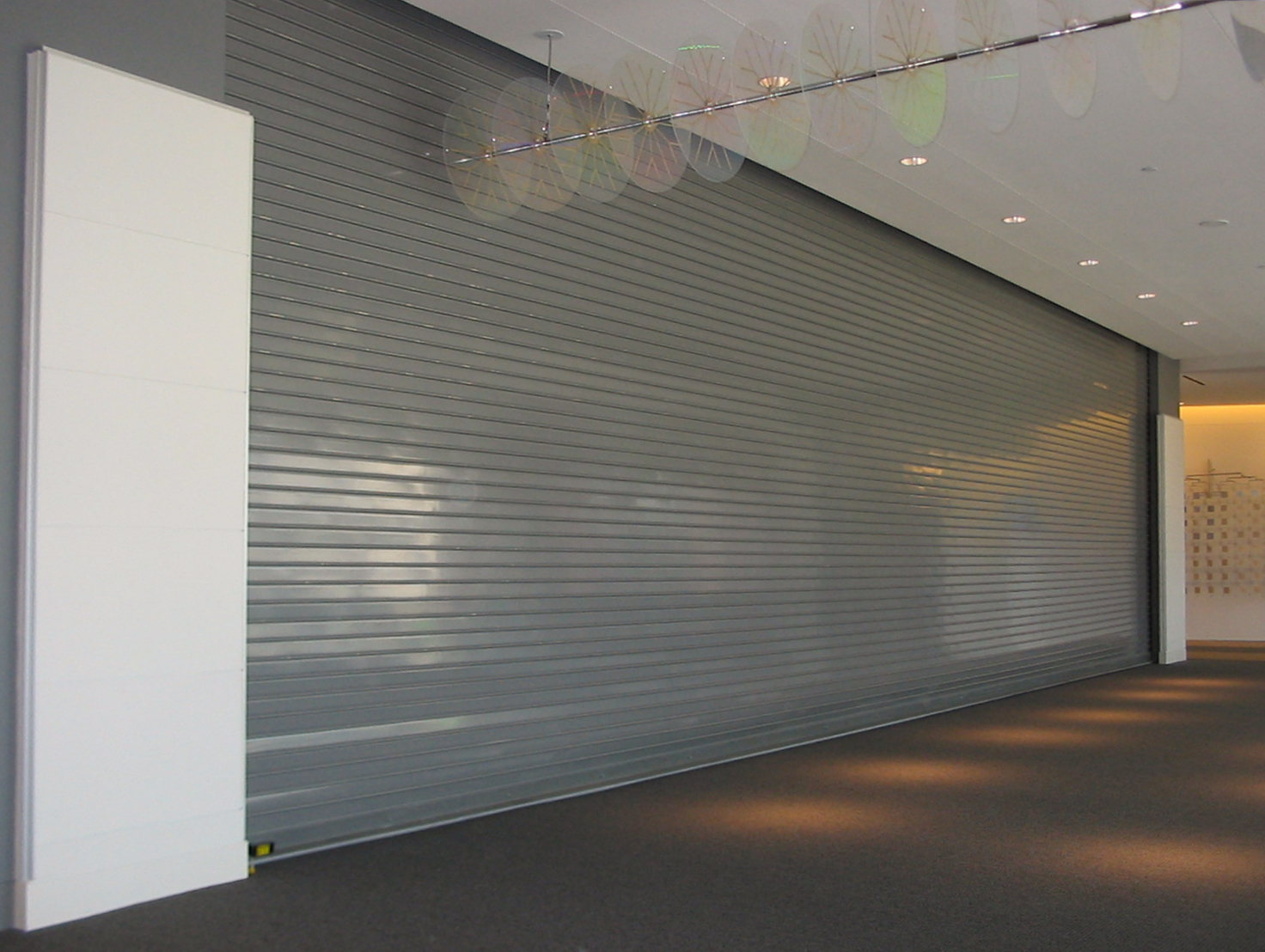

![FSFD-TR RadioShack 3C | McKEON FSFD-TR RadioShack 3 Deployed](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-3C.jpg)

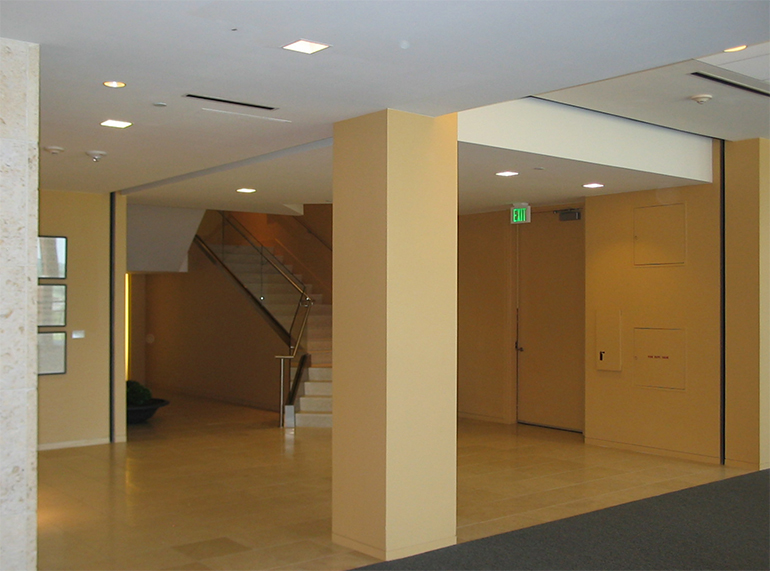

![FSFD-TR RadioShack 4O | McKEON FSFD-TR RadioShack Open](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-4O.jpg)

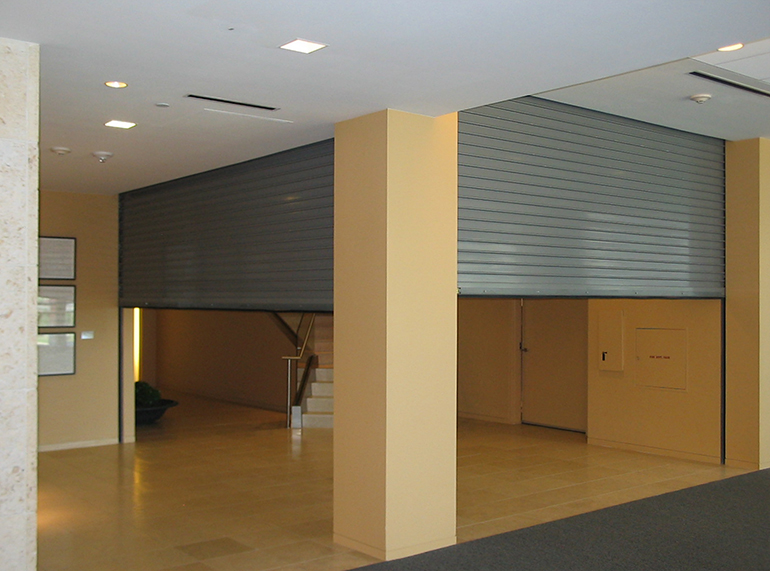

![FSFD-TR RadioShack 4M2 | McKEON FSFD-TR RadioShack Descending](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-4M2.jpg)

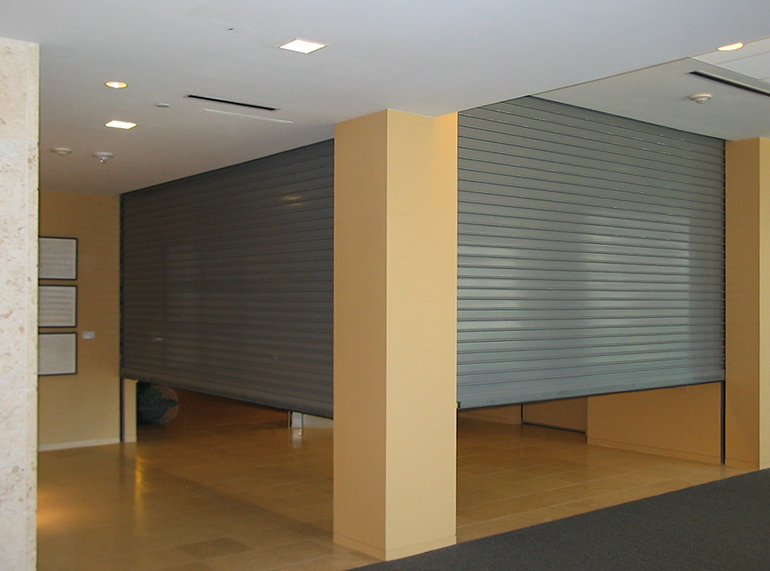

![FSFD-TR RadioShack 4M1 | McKEON FSFD-TR RadioShack Descending2](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-4M1.jpg)

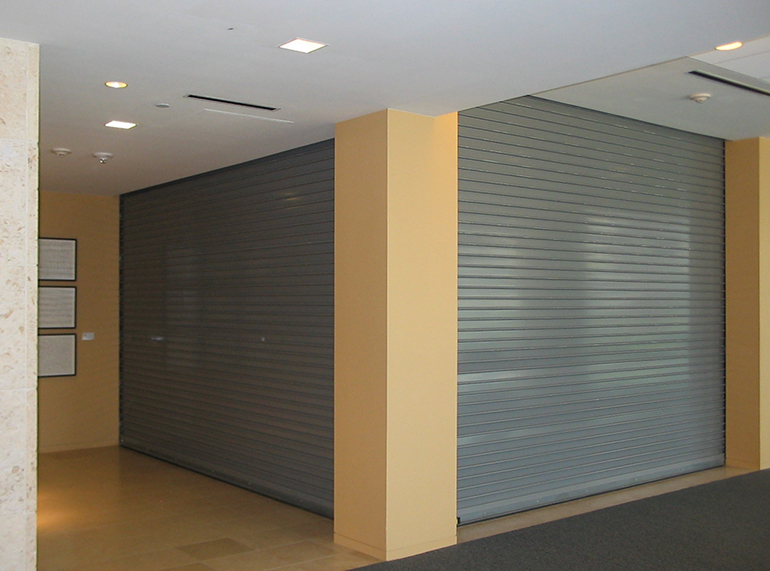

![FSFD-TR RadioShack 4C | McKEON FSFD-TR RadioShack Deployed](https://www.mckeondoor.com/wp-content/uploads/2019/07/FSFD-TR-RadioShack-4C.jpg)
